熔断监控Hystrix-Dashboard

1.Hystrix-Dashboard监控单个服务

1.1 pom.xml

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>1.5.3.RELEASE</version>
</parent>
  <properties>
      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
</properties>

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-eureka -->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-eureka</artifactId>
        <version>1.3.1.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-feign</artifactId>
        <version>1.3.1.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-tomcat</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
        <!-- 移除嵌入式tomcat插件 -->
        <exclusions>
            <exclusion>
                <groupId> org.hibernate</groupId>
                <artifactId>hibernate-validator</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-hystrix</artifactId>
        <version>1.3.1.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>
        <version>1.3.1.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
</dependencies>
<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
        </plugin>
    </plugins>
</build>
<!--注意：这里必须要添加，否则各种依赖有问题-->
<repositories>
    <repository>
        <id>spring-milestones</id>
        <name>Spring Milestones</name>
        <url>https://repo.spring.io/libs-milestone</url>
        <snapshots>
            <enabled>false</enabled>
        </snapshots>
    </repository>
</repositories>

1.2 application.yml

server:
  port: 8004

spring:
  application:
    name: Cloud-Hystrix-Dashboard

eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:5555/eureka/
    register-with-eureka: true
    fetch-registry: true

feign:
  hystrix:
    enabled: true

management:
  endpoints:
    web:
      exposure:
        include: hystrix.stream

1.3 main启动方法

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
@EnableHystrixDashboard
@EnableCircuitBreaker
public class HystrixDashboardRun {
    public static void main(String[] args) {
        SpringApplication.run(HystrixDashboardRun.class, args);
    }
}

1.4 remote远程调用

1.4.1 HelloRemote

@FeignClient(fallback=HelloRemoteHystrix.class,name="producer")
public interface HelloRemote {
    @RequestMapping("/hello")
    public String testHello(@RequestParam(value="param") String param);
}

1.4.2 HelloRemoteHystrix

@Component
public class HelloRemoteHystrix implements HelloRemote{

    public String testHello(String param) {
        // TODO Auto-generated method stub
        return "hello "+param+", this message send failed";
    }
}

1.5 Controller

@RestController
public class TestHello {

    @Autowired
    HelloRemote helloRemote;

    @RequestMapping("/testController/{param}")
    public String getHello(@PathVariable("param") String param){

        return helloRemote.testHello(param);
    }
}

1.6 调试说明

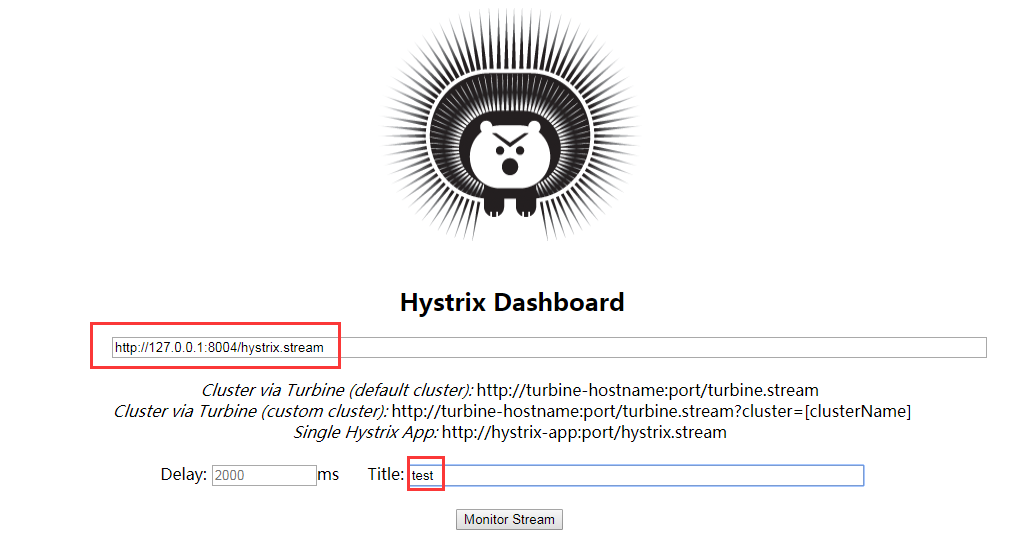

启动工程后访问 http://127.0.0.1:8004/hystrix

访问输入：http://127.0.0.1:8004/hystrix.stream

同时浏览器访问：http://127.0.0.1:8004/hystrix.stream 也可以看到数据。

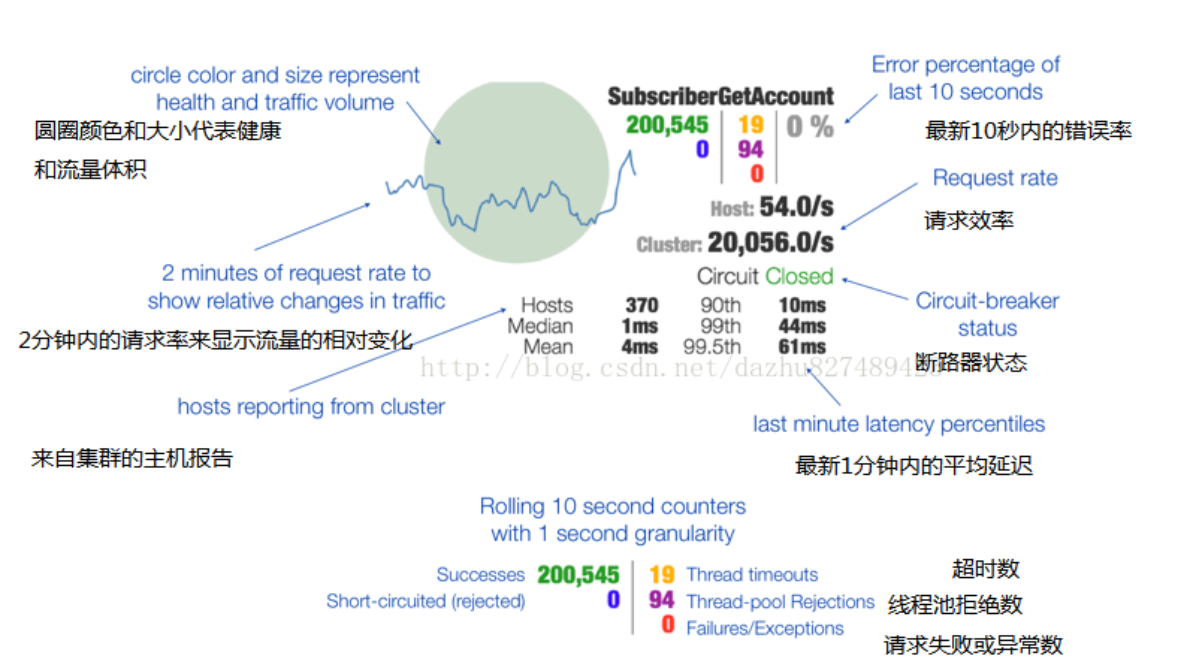

监控可以查看到下面数据：

2.Turbine监控多个服务（后续需要再研究）
